Upcoming Products

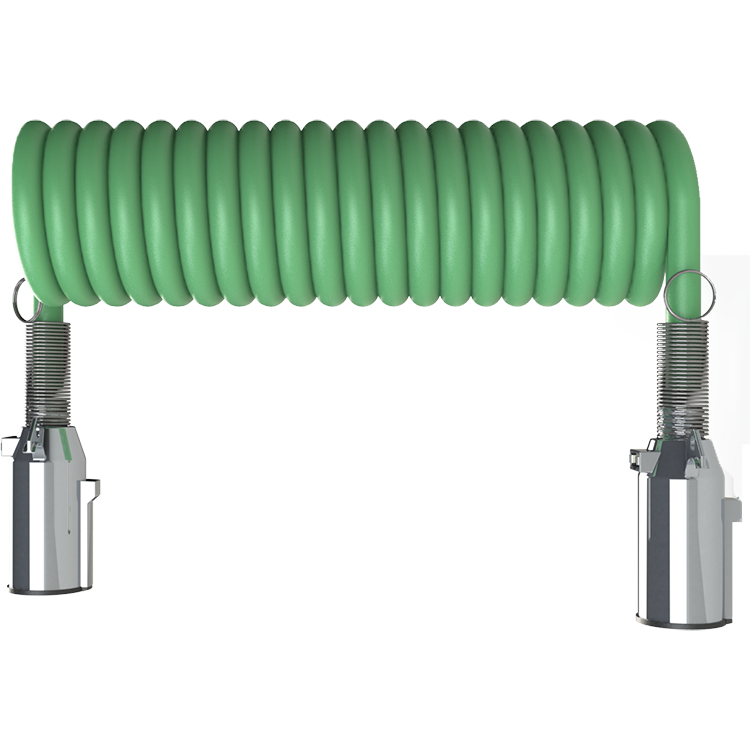

SAE J 560 7P/12V

Upcoming Product

Technical Specifications

Standard

SAE J 560
SAE J 2394

Features

Exceptional recoil Memory.
Ergonomic design of plug for ease of installation
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases. Durable and reliable Aluminium plug.

Colour

Green cable sheath with SAE connectors

Application

ABS and Lighting cables for Heavy commercial vehicles.

Economy

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	3.0 x 4, 5.0 x 2, 8.0 x 1	12V	SAE J 560
3.5	3.0 x 4, 5.0 x 2, 8.0 x 1	12V	SAE J 560
4.0	3.0 x 4, 5.0 x 2, 8.0 x 1	12V	SAE J 560

Pin Diagram

24V SAE J 560

Pin	Description	Diagram
	Earth
	Left Hand Rear Position
	Left Hand Indicator
	Stop Lights
	Right Hand Indicator
	Right Hand Rear Position
	Breaking Control

More Details

Less Details

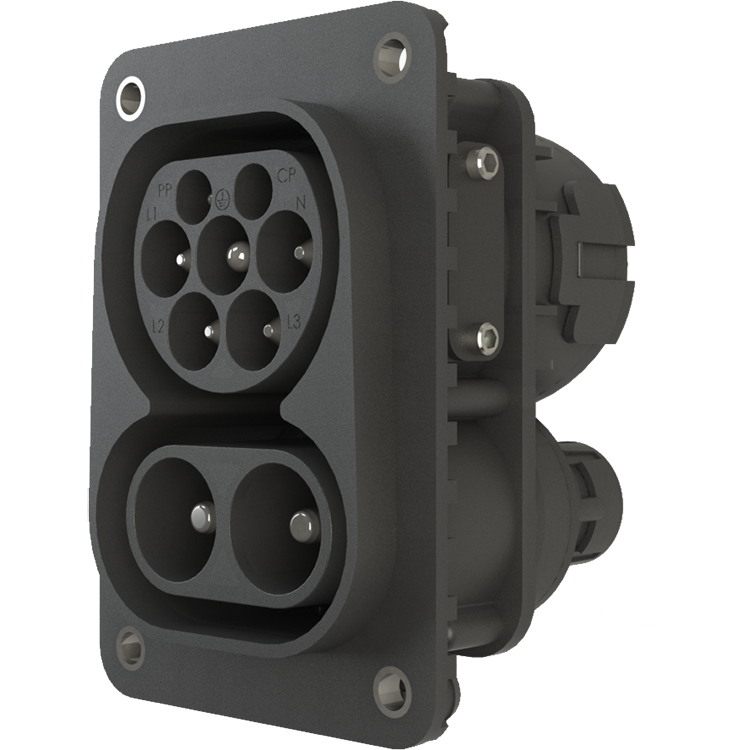

EV CCS

Upcoming Product

Specifications

Name

EV DC fast charger

Scope

World Wide - LMV/HMV

Standard

IEC - 62196

More Details

Less Details

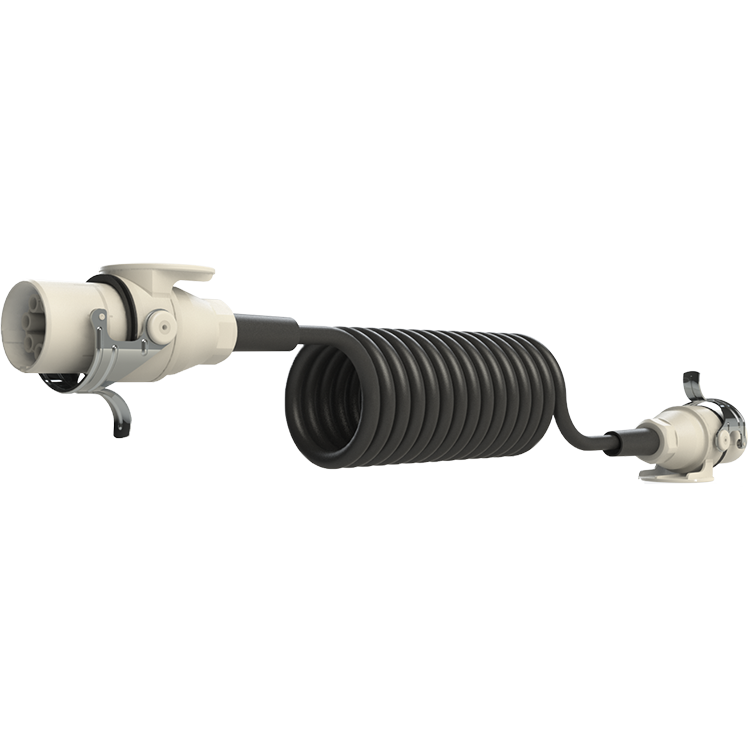

ISO 25981

Upcoming Product

Specifications

Name

Trailer connections for lift gates and charging systems

Scope

7 Pin 24 V connectors for lift gate

Standard

ISO 25981:2020

More Details
