Technical Specifications

Standard

ISO 1185
ISO 3731
ISO 12098

Features

Exceptional recoil Memory.
Ergonomic design of plug for ease of installation
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases.
Durable and reliable.

Colour

Black cable sheath with colour coded ISO connectors

Application

Normal and Supplementary electrical connector cables for commercial vehicles

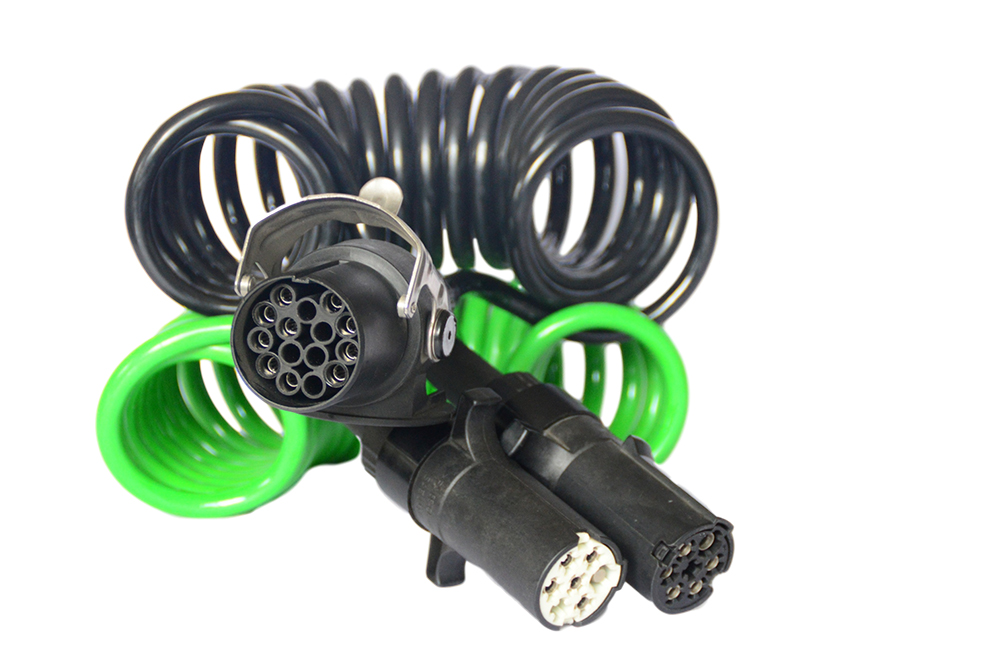

Plug Variants

Over Moulded Plug
Plastic Plug
Metal Plug

Premium

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731
3.5	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.5	4 x 1.5, 3 x 2.5	24 V	ISO 3731
4.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
4.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731

Ecomony

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731
3.5	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.5	4 x 1.0, 3 x 1.5	24 V	ISO 3731
4.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
4.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731

Pin Diagram

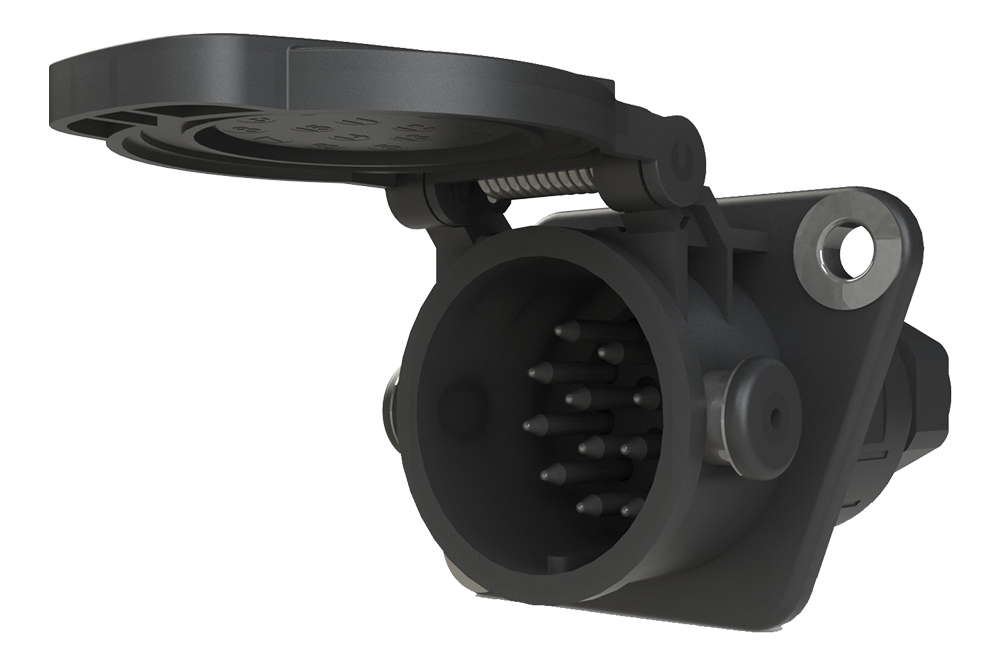

15 Pin ISO 12098

Pin	Description	Pin	Description	Diagram
	Left Hand Indicator		Power Supply
	Right Hand Indicator		Worn Brake Lining Sensor
	Rear Fog Light		Pressure Sensor For Brakes
	Earth		Axle Lifting Device
	Left Hand Rear Position		Earth For Contacts 14&15
	Right Hand Rear Position		Communication Data
	Stop Lights		Communication Data
	Reversing Light

Wiring Diagram

24V N ISO 1185

Pin	Description
	Earth
	Left Hand Rear Position
	Left Hand Indicator
	Stop Lights
	Right Hand Indicator
	Right Hand Rear Position
	Breaking Control

24V S ISO 3731

Pin	Description
	Earth
	Earth
	Reversing Light
	Power Supply
	Control Via Earth
	Power Supply
	Rear Fog Light
