Home/Konnectal/Coiled Cables

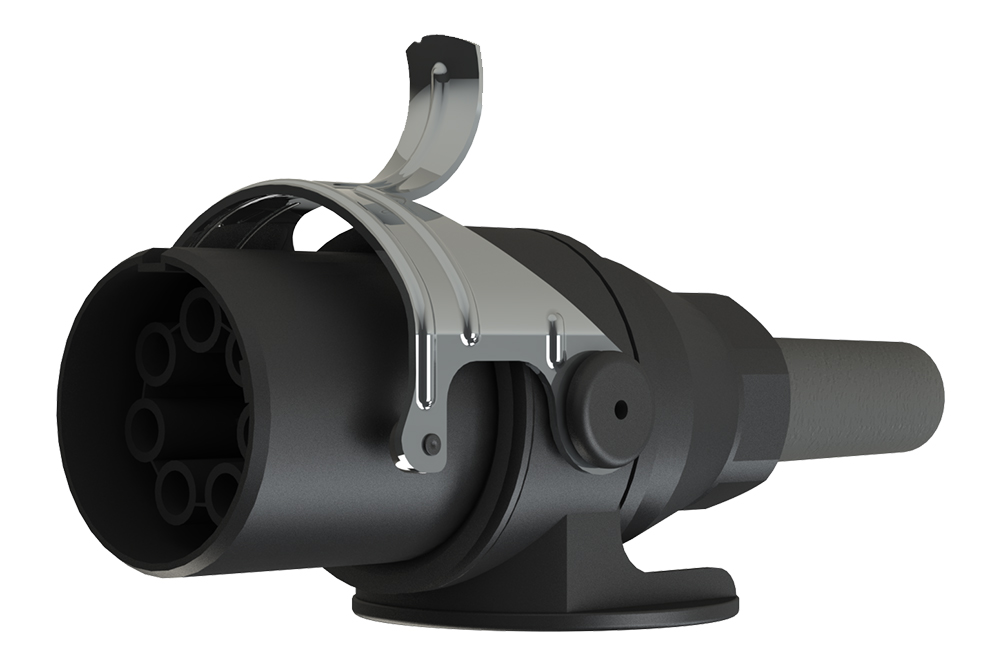

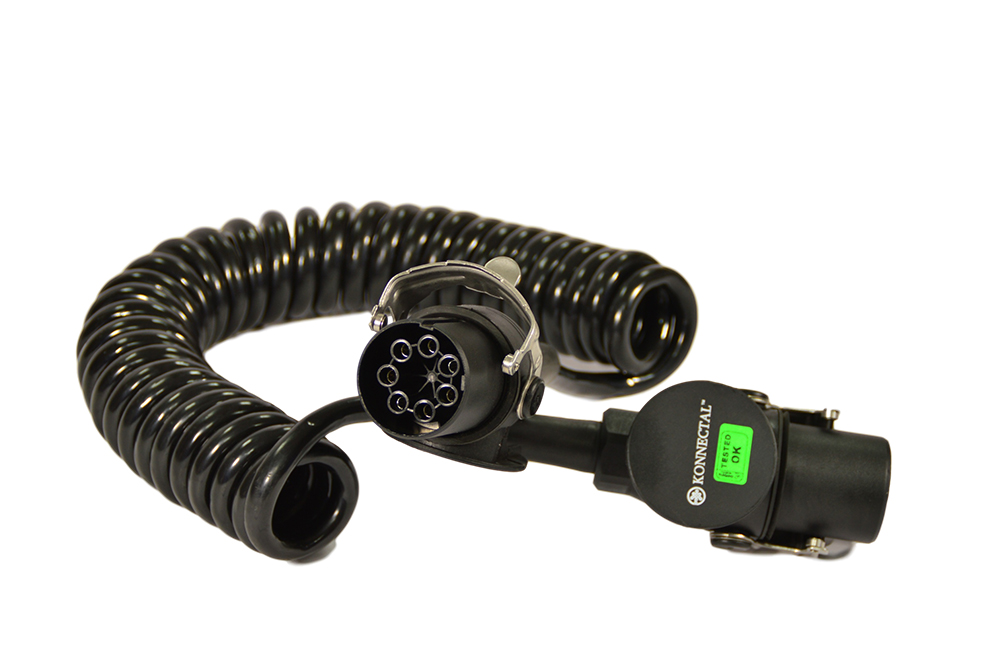

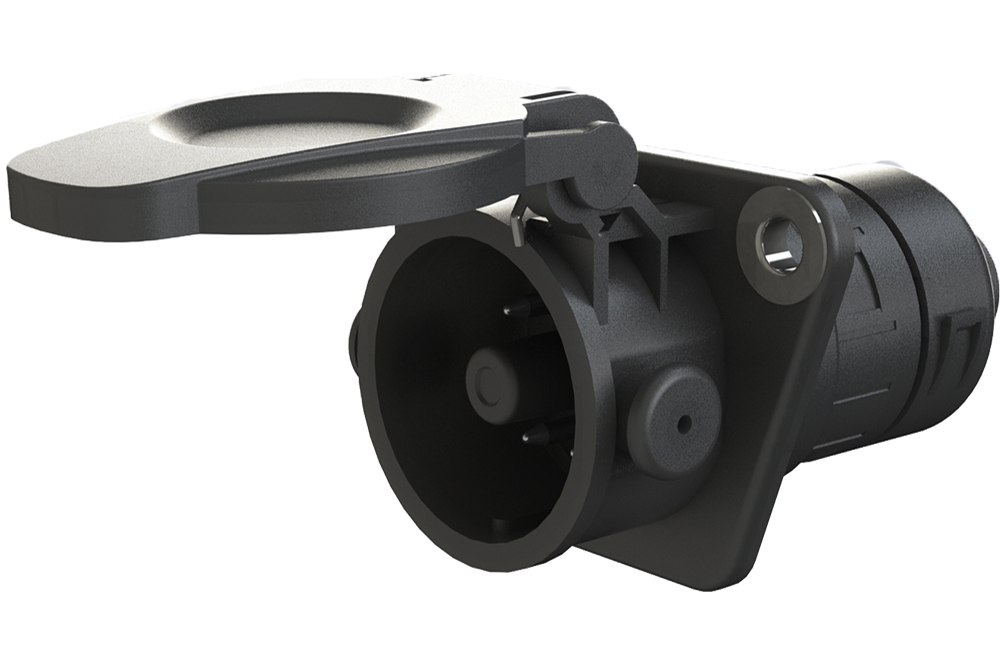

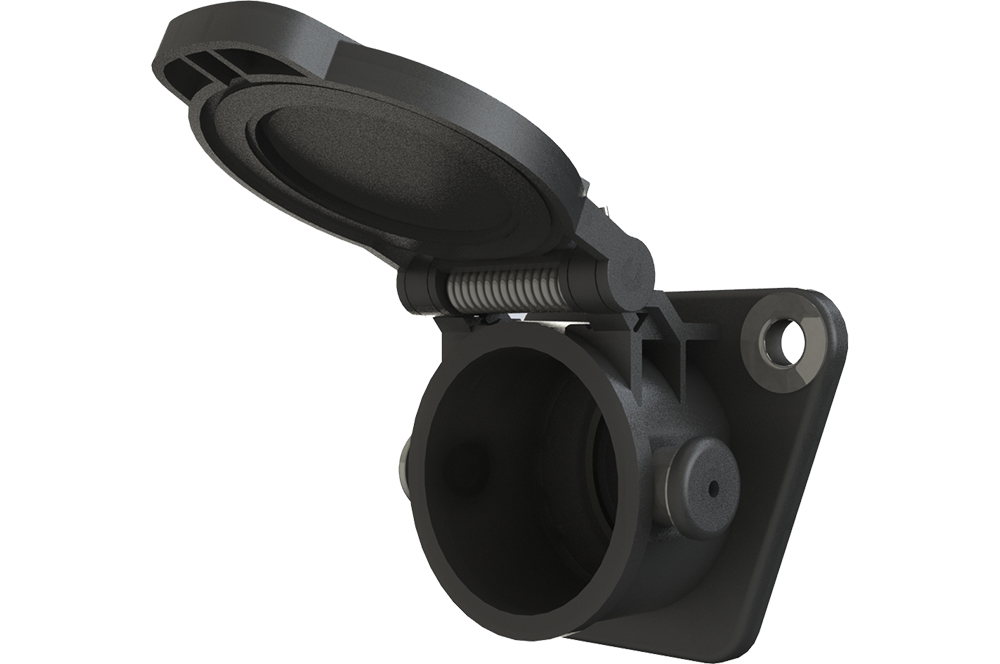

7P/24V EBS / 5P/24V ABS, ADR

Request for Callback

Technical Specifications

Standard

ISO 7638
ISO 4091
ISO 6722

Features

Exceptional recoil properties.
Fully compliant with ADR regulations
Data lines twisted separately for efficient data transfer
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases Durable and reliable.

Colour

Black cable sheath

Application

Electronic braking system coil for trucks and trailers.

Premium

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	3 x 1.5, 2 x 4.0, 2 x 1.5	24 V	ISO 7638
3.5	3 x 1.5, 2 x 4.0, 2 x 1.5	24 V	ISO 7638
4.0	3 x 1.5, 2 x 4.0, 2 x 1.5	24 V	ISO 7638

Economy

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	3 x 1.5, 2 x 4.0, 2 x 1.0	24 V	ISO 7638
3.5	3 x 1.5, 2 x 4.0, 2 x 1.0	24 V	ISO 7638
4.0	3 x 1.5, 2 x 4.0, 2 x 1.0	24 V	ISO 7638

Pin Diagram

24V EBS ISO 7638

Pin	Description	Diagram
	Solenoid Control Valve Plus
	Electronic Plus
	Electronic Minus
	Solenoid Control Valve Minus
	Warning System
	Data Line
	Data Line
