Home/Konnectal/Coiled Cables

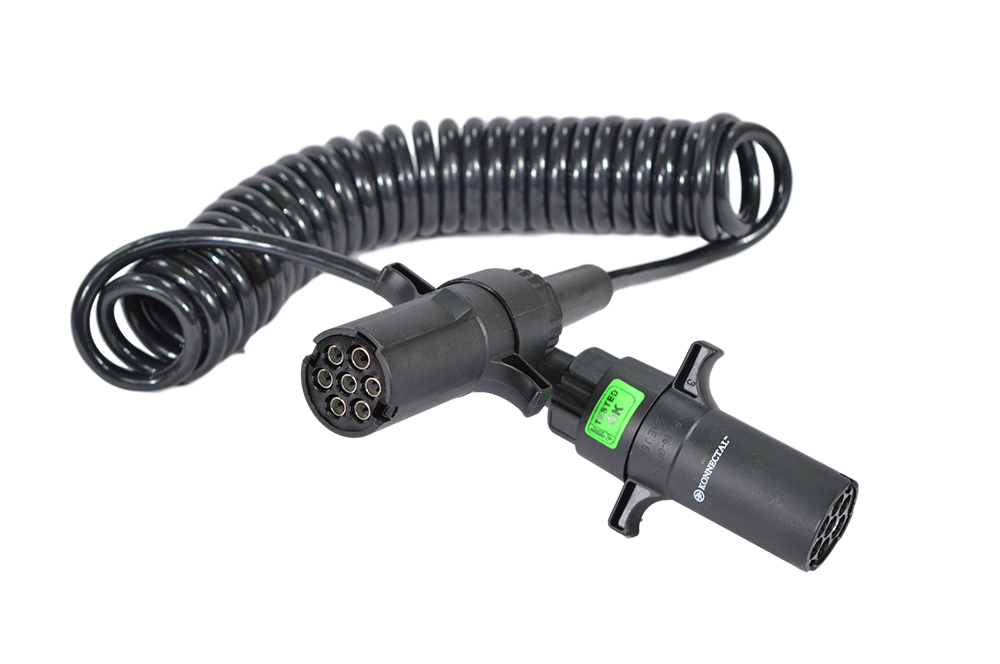

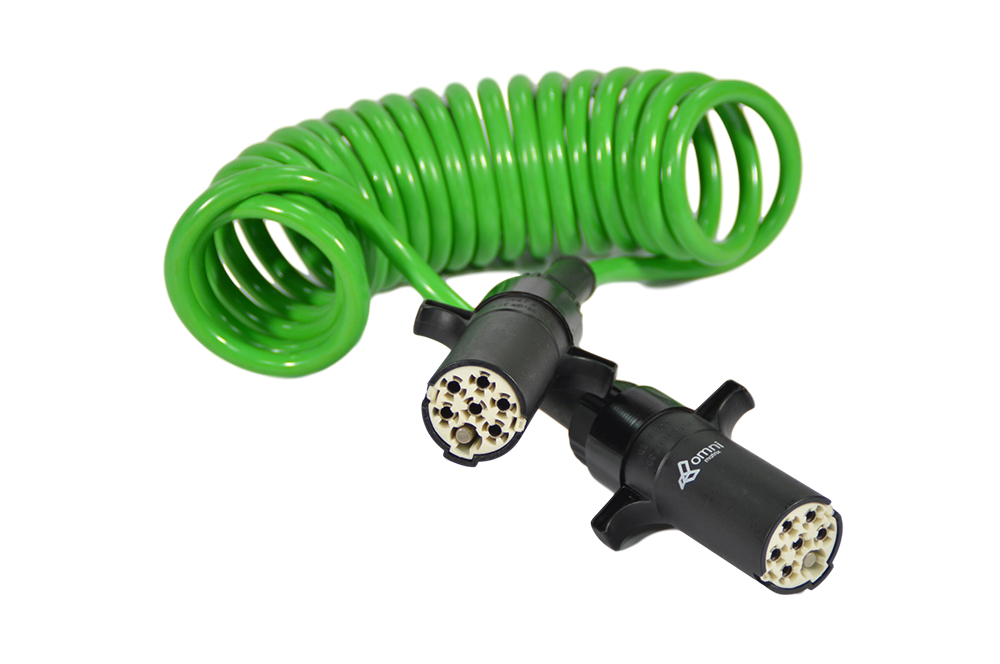

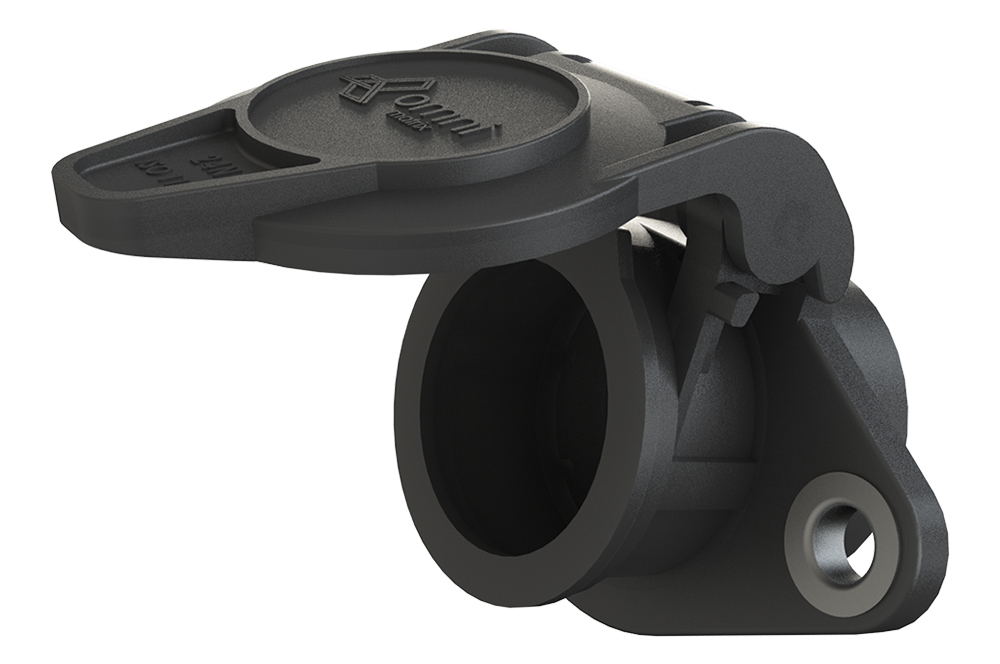

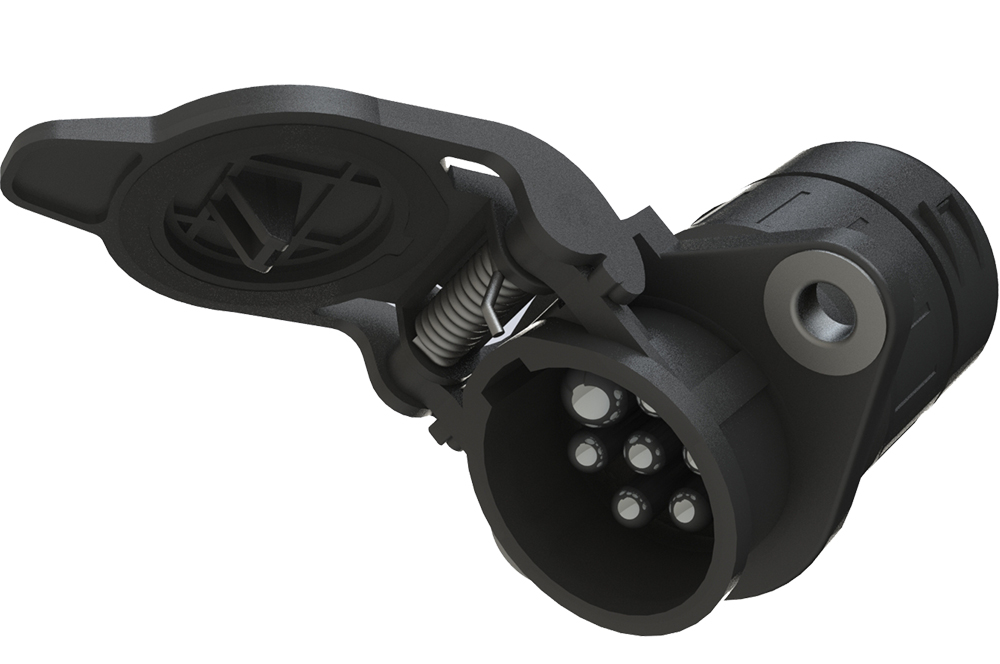

7P/24V Type N / Type S

Request for Callback

Technical Specifications

Standard

ISO 1185
ISO 3731
ISO 6722

Features

Exceptional recoil memory.
Ergonomic design of plug for ease of installation.
Plug design to withstand pull out force.
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases. Durable and reliable.

Colour

Black cable sheath with colour coded ISO connectors.

Application

Normal and Supplementary electrical connector cables for commercial vehicles.

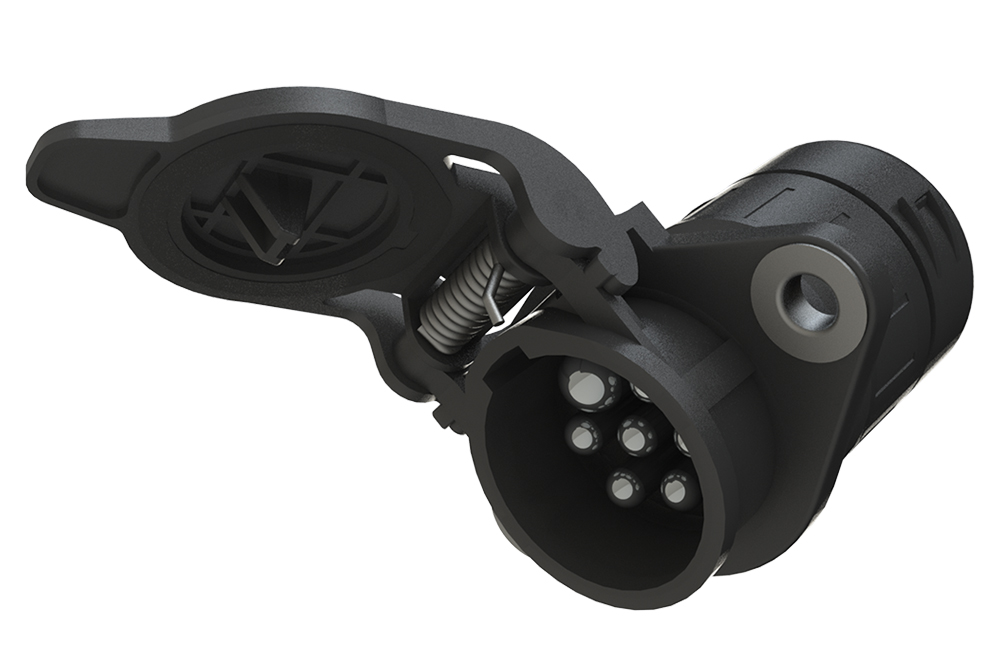

Plug Variants

Over Moulded Plug
Plastic Plug
Metal Plug

Premium

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731
3.5	6 x 1.5, 1 x 2.5	24 V	ISO 1185
3.5	4 x 1.5, 3 x 2.5	24 V	ISO 3731
4.0	6 x 1.5, 1 x 2.5	24 V	ISO 1185
4.0	4 x 1.5, 3 x 2.5	24 V	ISO 3731

Economy

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731
3.5	6 x 1.0, 1 x 1.5	24 V	ISO 1185
3.5	4 x 1.0, 3 x 1.5	24 V	ISO 3731
4.0	6 x 1.0, 1 x 1.5	24 V	ISO 1185
4.0	4 x 1.0, 3 x 1.5	24 V	ISO 3731

Pin Diagram

24V N ISO 1185

Pin	Description	Diagram
	Earth
	Left Hand Rear Position
	Left Hand Indicator
	Stop Lights
	Right Hand Indicator
	Right Hand Rear Position
	Breaking Control

24V S ISO 3731

Pin	Description	Diagram
	Earth
	Earth
	Reversing Light
	Power Supply
	Control Via Earth
	Power Supply
	Rear Fog Light
