Konnectal
/
Coiled Cables

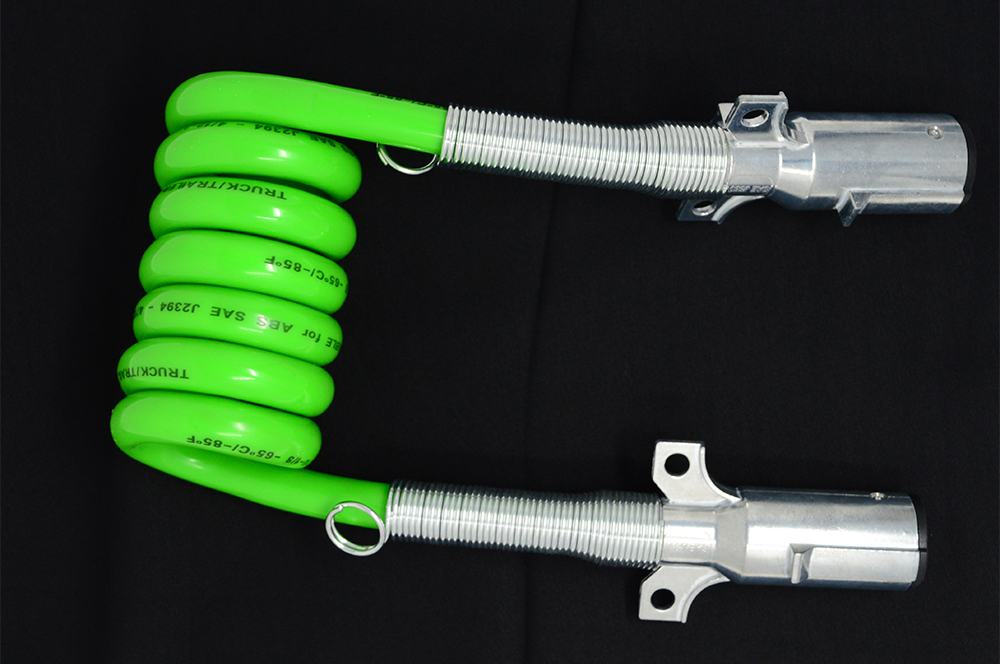

SAE J 560 7P/12V
Previous
Next
Request for Callback
Technical Specifications
Standard
SAE J 560
SAE J 2394
Features
Exceptional recoil Memory.
Ergonomic design of plug for ease of installation
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.
Materials
Sheath material with excellent resistance to general chemicals and greases. Durable and reliable Aluminium plug.
Colour
Green cable sheath with SAE connectors
Application
ABS and Lighting cables for Heavy commercial vehicles.
Economy
Max Extended Length (m)
Cable Specification (mm
2
)
Voltage
Standard
3.0
3.0 x 4, 5.0 x 2, 8.0 x 1
12V
SAE J 560
3.5
3.0 x 4, 5.0 x 2, 8.0 x 1
12V
SAE J 560
4.0
3.0 x 4, 5.0 x 2, 8.0 x 1
12V
SAE J 560
Pin Diagram
24V SAE J 560
Pin
Description
Diagram
Earth
Left Hand Rear Position
Left Hand Indicator
Stop Lights
Right Hand Indicator
Right Hand Rear Position
Breaking Control
Related Products
24 N Socket
24 N Plug
24 N Coil Cable
24 N Park Socket
24 N Straight Cable
